cord reinforcement soft packing straps produce machine

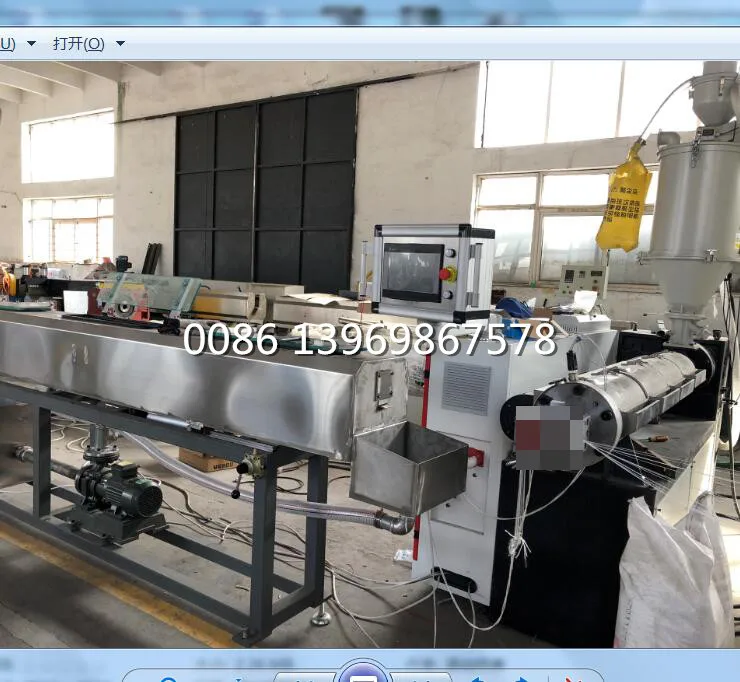

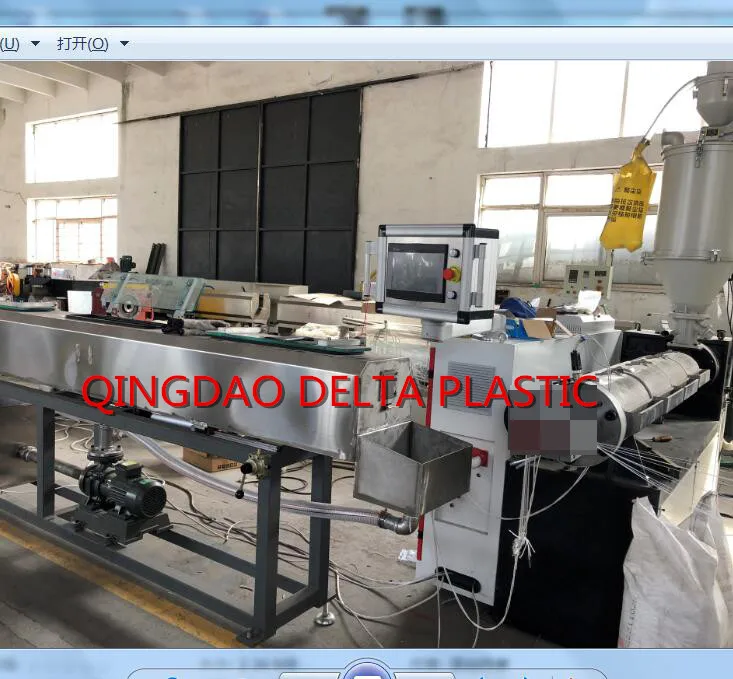

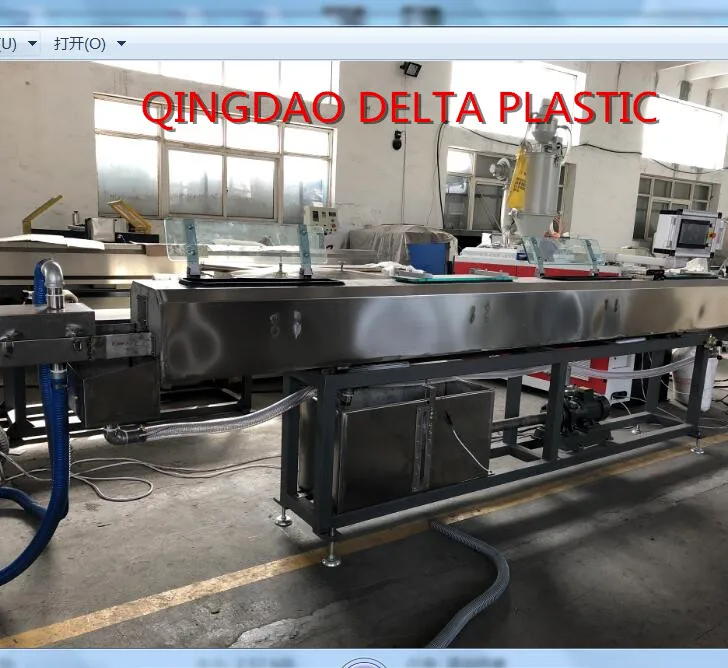

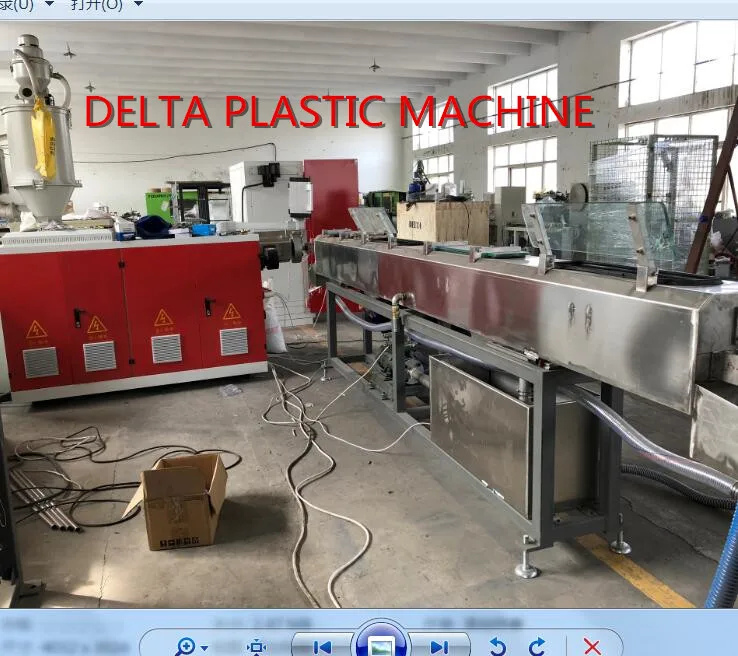

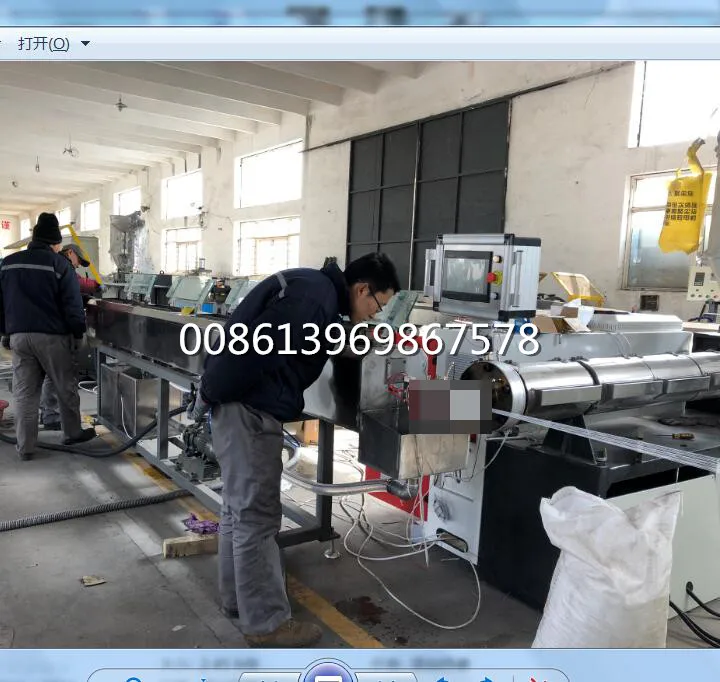

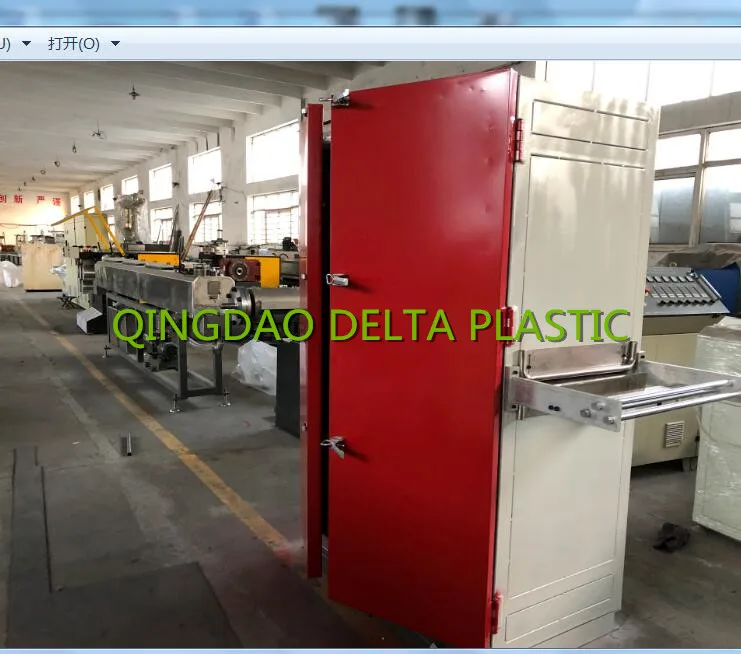

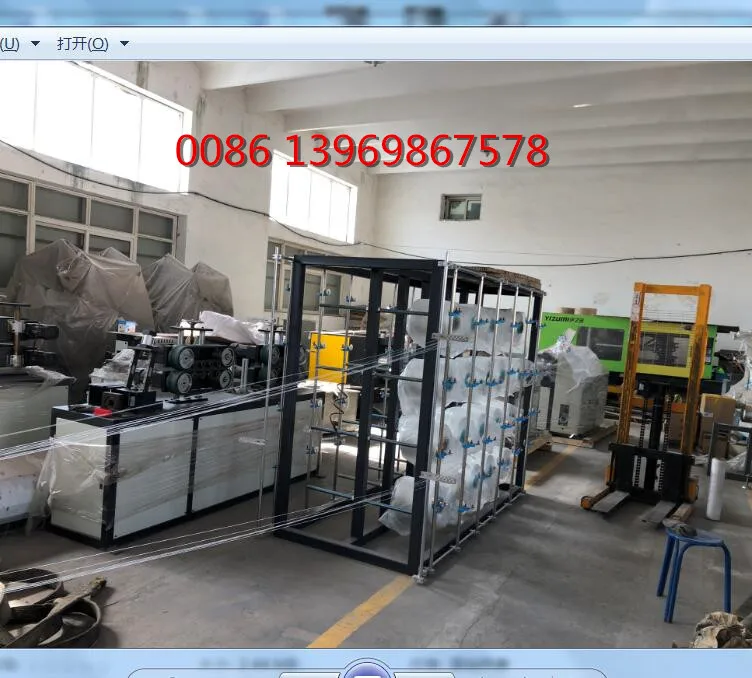

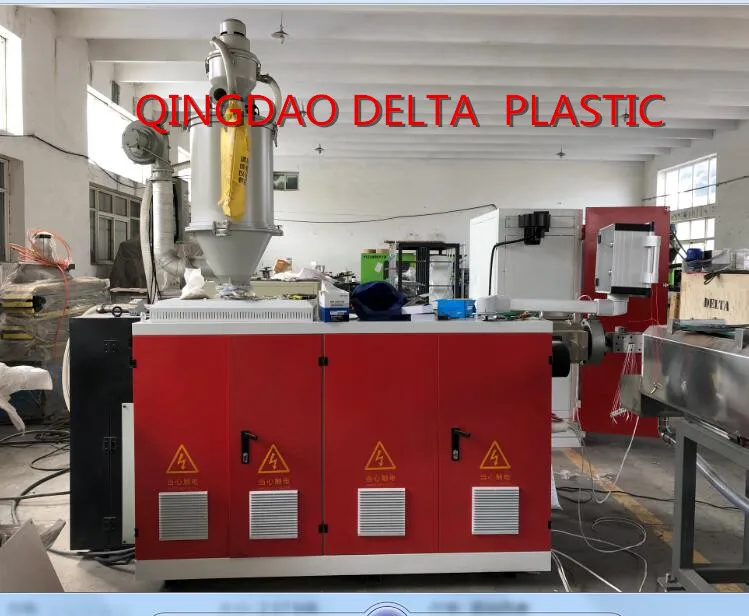

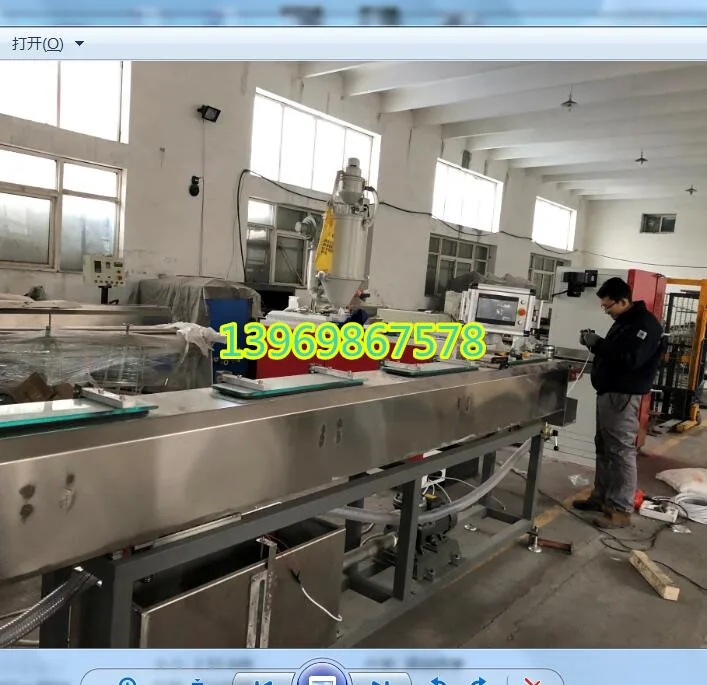

cord reinforcement soft packing straps production line
our machine special points:
1. high speed 130meter per minute
2. our machine die head and mould same as italy machine design.

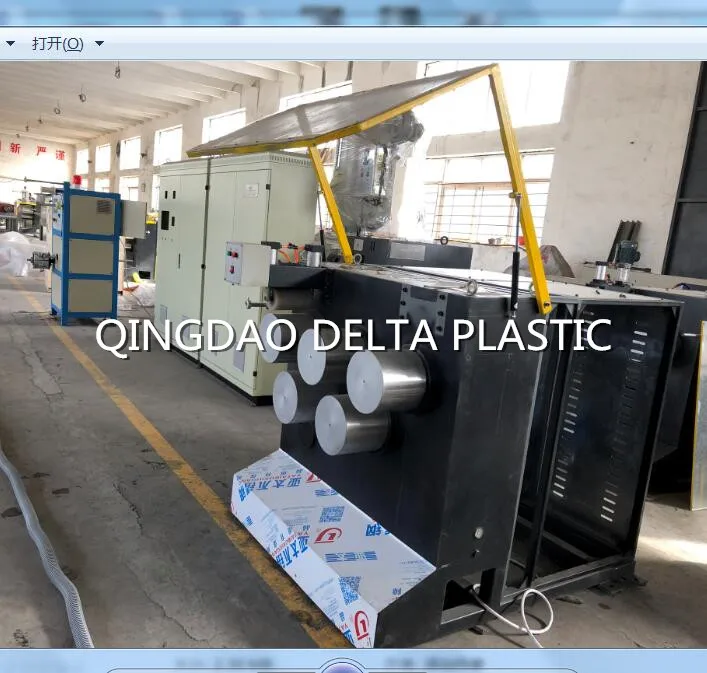

3. high precision winder.
4 . high quality straps can make

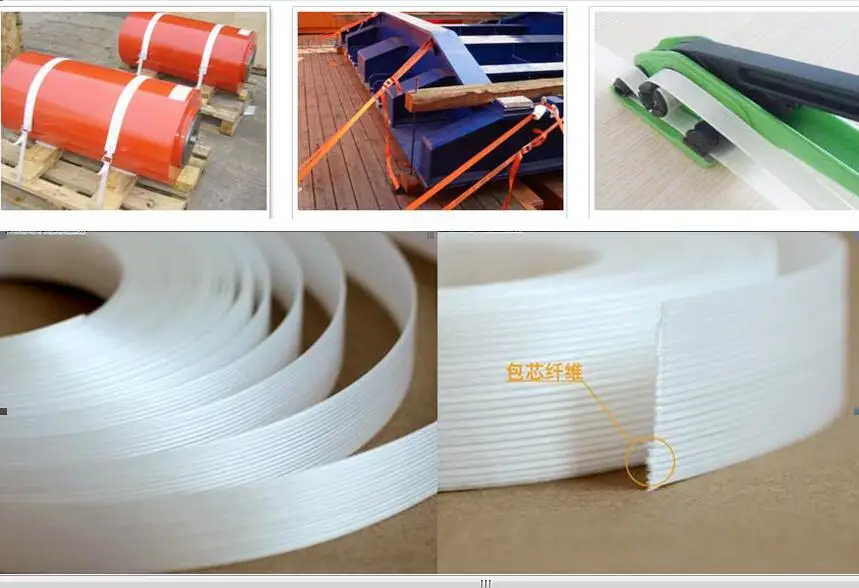

the high quality straps have the following points:
a. cord arrange very regular
b. cord in the right middle of the straps
c. high strength
d. high flexibility
1.) STRAPS PARAMETERS
1.High strength , special use for heavy duty packing . 2. Light and soft , weight is only 20% of metal straps 3.Side is not sharpen , will not hurt commodities and workers . 4.Will not get rust and corrosion , will not change form . 5. Can use in a wide range of temperature and climate, can use in the condition of : from -40℃to 130℃ 6. Can buffering impacting during commodities transportation 7. Can overlap and through space very conveniently without deforming
8.Convenient for using steel buckle using to package commodities .
Fiber strap’s material :
2.) MACHINE’S GENERAL INFORMATION
1. Power 380v/3P/50Hz
2. Material plastic virgin pellets, PET Yarn
3. Extruding capacity Max. 120 kg/h.
4. Product specification width 9-36 mm, thickness 0.7-1.6 mm
5. Speed 80-130 m/min
6. Mid-height of extruder 1000 mm
7. Control Direction From right to left
8. Total power 60 KW(Energy consumption: Appro.40 KW)
9. Humidity <85%
10. Temperature 0-40°C
11. Cooling cycling water <20°C>0.3Mpa ~30T/h
12. Compressed air 0.4m³/min>0.5MPa
13. Overall dimension 20-25m×5m×3.5m
3. ) STRAPS SPECIFICATION
Fiber size: 500D 1000D 2000D 3000D 6000D 9000D
Width
Loading capacity
Roller meters
Fiber quantity
13mm
300-488kg
1100m
12 p
16mm
425-690kg
850m
16 p
19mm
600-980kg
600m
19-20p
25mm
785-1250kg
500m
21-23p
32mm
1500-2600kg
230m
23p
4.) MACHINE OTHER FEATURES
1. stable working
2. produce smoothly straps
3. fiber no damage during producing
4. high strength and high strong strap can produce.
5. speed: max can be 130meters per hour
6. capacity : 70-120kg per hour
5.) WHAT WE HAVE ABOUT THIS MACHINE
1. full experience in design and making
2. one machine different size straps can make
3. professional manufacturer for pet straps machine, pp straps machine and cord reinforcement straps machine
